2100SJ

Max. working height: 66.0m
Platform capacity: 300kg
Stowed height: 3.0m
Weight: 41,730kg

Add to quote list

Description

2020 Rental Editor's Choice Awards 2100SJ

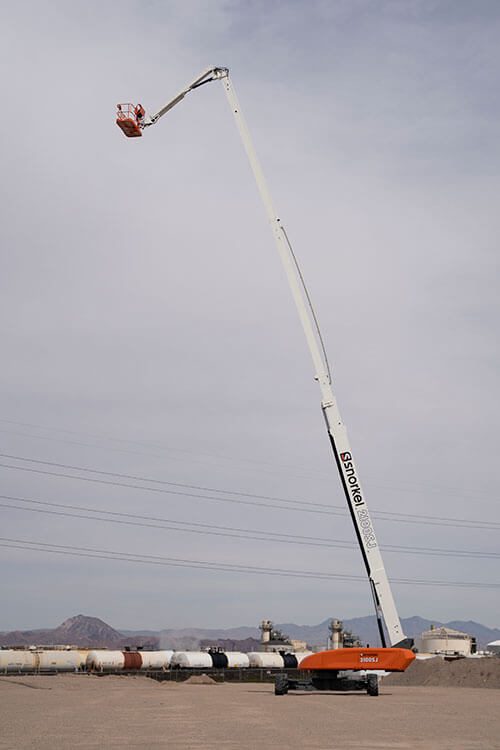

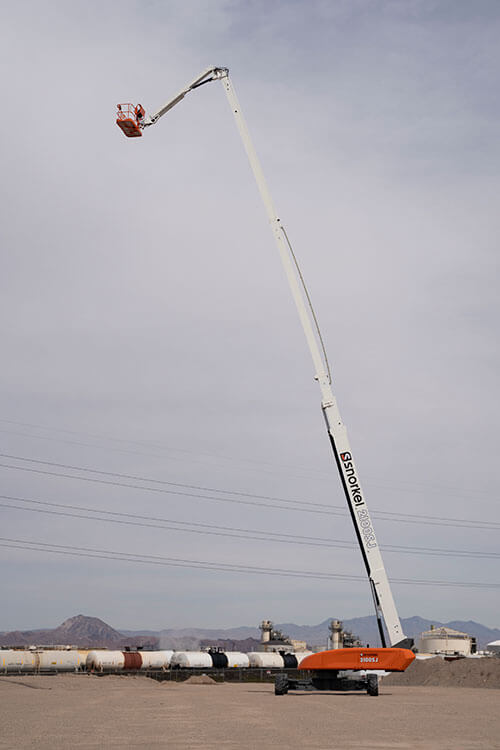

The Snorkel 2100SJ is Snorkel’s largest diesel telescopic boom lift with patented design features. With an impressive reach and lift height, exceptional up and over capabilities offer a maximum horizontal reach up to 100 ft. (30.5m) with a 30 ft. (9.1m) jib boom. Two control panels on the platform allow for safe operation while working at height. Robust 4-wheel drive and multiple steering modes deliver superb rough terrain performance with a tight inside turning radius for excellent maneuverability. Its innovative wheel extension and narrow wheelbase provide stability on the job and ease of transportation.

Standard Features

Snorkel Guard™ secondary guarding system
Secondary platform controls
Four wheel drive
Hydraulic platform rotation
5 steering modes – front axle, rear axle, crab, complementary & lateral
360º continuous turntable rotation
All proportional controls
Tool tray
Remote lower control panel
Flashing amber light
Dual lanyard attachment points
Foam filled tires
Power line to platform
Snorkel OnSite™ telematics – 60 months
Drive motion alarm
2 year parts & labor, 5 year structural warranty

Additional information

Max Working Height	66.0m
Max Platform Height	64.0m
Max Working Outreach	35.1m
Platform Size	2.4m x 0.9m
Overall Width	2.5m
Operational width (extended)	5.5m
Stowed Length	23m
Stowed Height	3.0m
Ground Clearance	355mm
Platform Capacity - Unrestricted	349kg
Platform Capacity - Restricted	454kg
Max Drive Height	64.0m
Max Wind Speed	12.5m/s
Max Drive Speed (Stowed)	4.0km/h
Max Drive Speed (Elevated)	0.2km/h
Jib Length	9.1m
Jib Arc	128º (-55° to +73°)
Platform Rotation	150º
Turret Rotation	360° continuous
Tailswing (Axles Retracted)	2.05m
Tailswing (Axles Extended)	0.7m
Raise/Lower Time	5/5.5 min
Gradeability	35%
Inside turning radius (axles retracted)	3.0m
Inside turning radius (axles extended)	2.6m
Outside turning radius (axles retracted)	5.0m
Outside turning radius (axles extended)	6.4m
Tyres	445/50-710 foam filled 24 ply
Controls	Proportional joystick
Drive System	4 wheel drive
Power Source	Deutz TCD 2.9L 74hp – Tier 4 Final
Weight	41,730kg

Options

Special paint colors
Airline to platform
Non-marking tires
AC generator package 110V/240V
Cold weather package
Extreme cold weather package
Extreme environment package
Light package
Glazier package
Environmental hydraulic oil

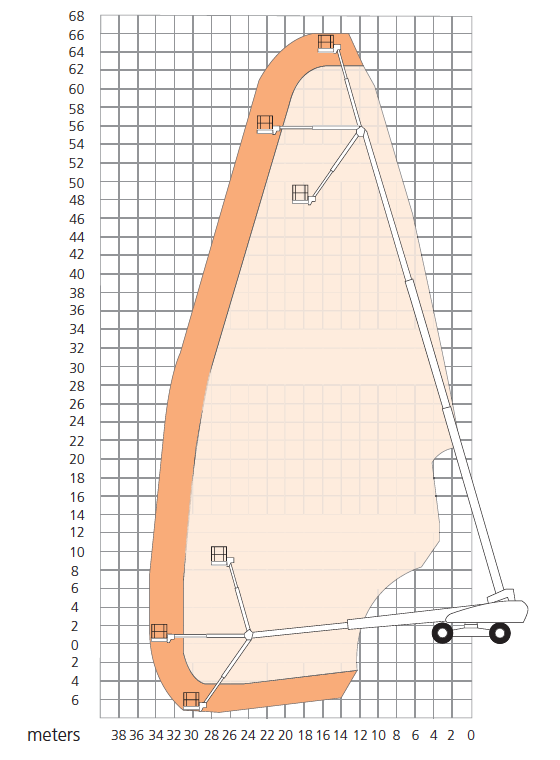

Working Envelope

Snorkel 2100SJ working envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.
