460SJ

Max. working height: 16.0m
Platform capacity: 272kg
Stowed height: 2.38m
Weight: 7,829kg

Add to quote list

Description

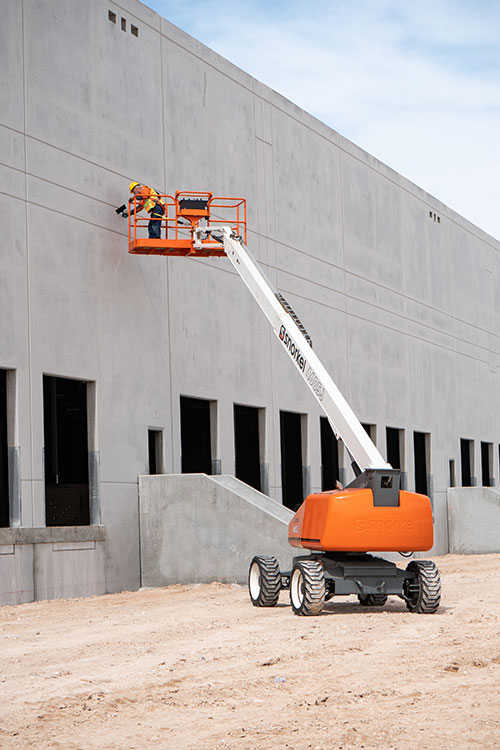

The new Snorkel 460SJ is a diesel mid-size telescopic boom lift, which features powerful constant four wheel drive and a fixed axle for excellent rough terrain performance. Equipped with Snorkel’s new removeable tri-entry platform designed for fast replacement, and a 2.0m jib boom, this all-steel lift features Snorkel Guard™ secondary guarding system as standard. Ideal for construction and industrial applications.

Standard Features

Snorkel Guard™ secondary guarding system
1.67m 135º jib
Oscillating axle
Hydraulic platform rotation
Hydraulic oil cooler
Four wheel drive
All proportional controls
Swing-out engine tray
Hour meter & on-board diagnostics display
Power line to platform
Tilt alarm & cut-out
DC emergency operation
Tri-entry platform
Flashing amber light
Platform overload system
2 year parts & labor, 5 year structural warranty

Additional information

Max Working Height	16.0m
Max Platform Height	14.0m
Max Working Outreach	12.3m
Platform Size	2.44m x 0.91m
Overall Width	2.31m
Transport Width	2.08m
Overall Length	8.6m
Transport Length	6.81m
Stowed Height	2.38m
Transport Height	2.92m
Ground Clearance	320mm
Platform Capacity - Unrestricted	272kg
Platform Capacity - Restricted	454kg
Max Drive Height	14.0m
Max Wind Speed	12.5m/s
Max Drive Speed (Stowed)	6.8km/h
Max Drive Speed (Elevated)	1.0 km/h
Jib Length	1.67m
Jib Arc	135º (+70º/-65º)
Platform Rotation	150º
Turret Rotation	360° continuous
Tailswing	0.9m
Raise/Lower Time	64/64 seconds
Gradeability	50%
Inside Turning Radius	3.0m
Outside Turning Radius	5.06m
Tyres	355/55 D625 foam filled lug
Controls	Proportional drive, raise, slew, extend, jib & platform rotate
Drive System	4 wheel drive
Power Source	Deutz 2.9L 36.5kW/49hp diesel – stage V
Auxillary Power Unit	12V DC
Weight	7,829kg

Options

Special paint colors
AC generator 110V/2.5kW
Non-marking tires
Air-filled flotation tires
Dual fuel
Airline to platform
Aircraft package
Deluxe aircraft package
Cold weather package
Extreme cold weather package
Extreme environment package
Light package
Tow kit
Glazier package
7.5kW generator package
Environmental hydraulic oil
Tool tray
Pipe rack
Snorkel OnSite™ telematics

Working Envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.
