600S ALL TERRAIN

Max. working height: 20.5m
Platform capacity: 272kg
Stowed height: 2.61m
Weight: 13,027kg

Add to quote list

Description

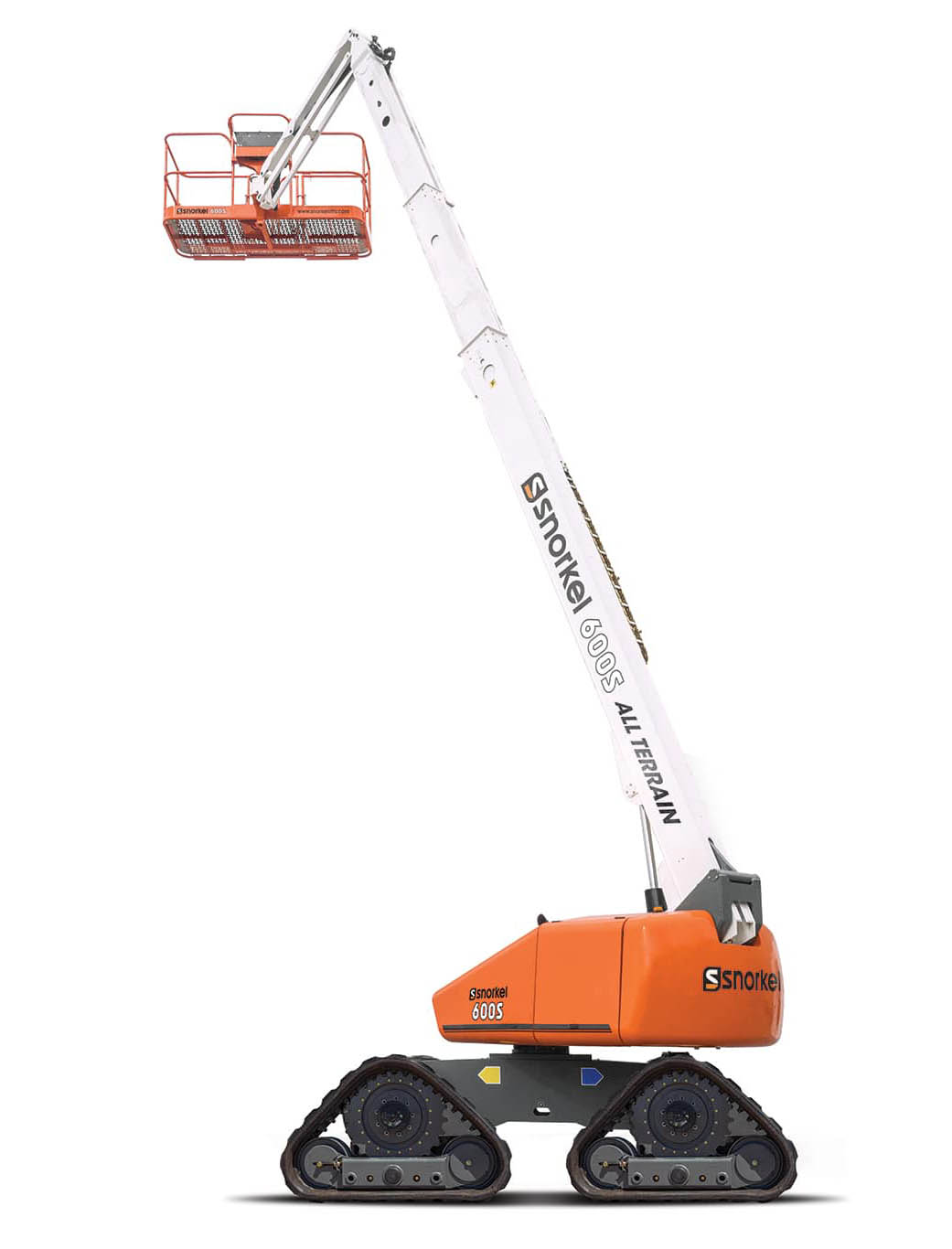

The Snorkel 600S All Terrain telescopic boom lift is fitted with four independent rubber tracks. Easily tackling soft and sensitive environments, this boom lift offers superb maneuverability without sinking or disturbing the ground. Developed with a high torque hydraulic pump, it also has excellent gradeability and can climb gradients up to 45%.

Standard Features

Snorkel Guard™ secondary guarding system
Oscillating axle (203mm of oscillation)
Hydraulic platform rotation
Hydraulic oil cooler
4-track drive
All proportional controls
Swing-out engine tray
Motion alarm
Horn
Hour meter & on-board diagnostics display
Power line to platform
5º tilt alarm & cut out
Hour meter & on-board diagnostics display
DC emergency operation
Tri-entry platform
Flashing amber light
Platform overload system
2 year parts & labor, 5 year structural warranty

Additional information

Max Working Height	20.5m
Max Platform Height	18.5m
Max Working Outreach	16.0m
Platform Size	2.44m x 0.91m
Transport Width	2.24m
Overall Width	2.46m
Transport Length	9.2m
Overall Length	9.2m
Transport Height	2.61m
Stowed Height	2.61m
Ground Clearance	444mm
Platform Capacity - Unrestricted	272kg
Platform Capacity - Restricted	454kg
Max Drive Height	18.5m
Max Wind Speed	12.5m/s
Max Drive Speed (Stowed)	5.6 km/h
Max Drive Speed (Elevated)	0.96 km/h
Jib Length	n/a
Jib Arc	n/a
Platform Rotation	150º
Turret Rotation	360° continuous
Raise/Lower Time	50 / 50 seconds
Tailswing	1.2m
Gradeability	45%
Inside Turning Radius	5.94m
Outside Turning Radius	8.38m
Tyres	independent rubber tracks
Controls	Proportional drive, raise, slew, extend, jib & platform rotate
Drive System	4 track drive
Power Source	Deutz 2.9L 55kW/74hp – Stage V
Auxillary Power Unit	12V DC
Weight	13,027kg

Options

Special paint colors
Airline to platform
AC generator 110V/220V 2kW
Aircraft package
Deluxe aircraft package
Cold weather package
Extreme cold weather package
Extreme environment package
Glazier package
Light package
10kW generator package
10kW generator/welder package
Environmental hydraulic oil
Tool tray
Pipe rack
Snorkel OnSite™ telematics

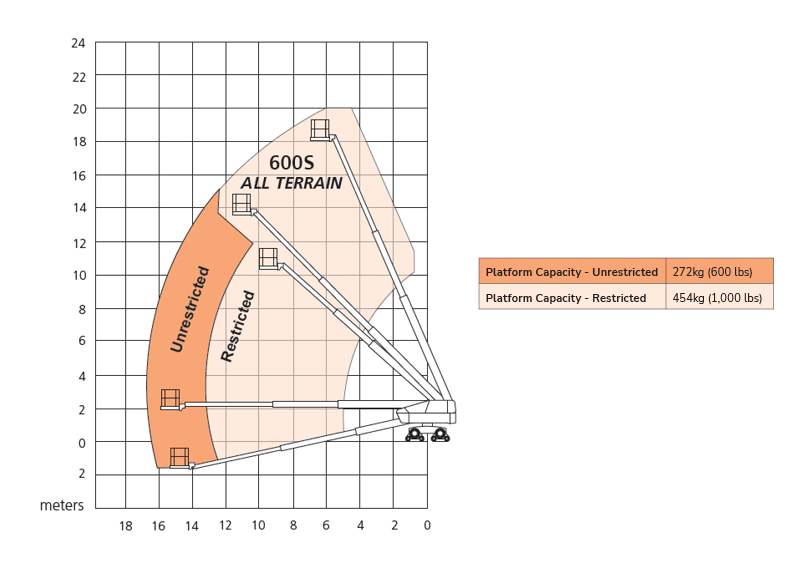

Working Envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.
