A46JE

  • Max. working height: 16.0m
  • Platform capacity: 227kg
  • Stowed height: 2.0m
  • Weight: 6,664kg

 Product Specification Sheet

 Snorkel Guard™ Brochure
Add to quote list

Description

The Snorkel A46JE is a class-leading electric articulated boom lift which can lift 227kg to a working height of 16.1m. This high performance boom delivers a superb working envelope, with the added flexibility of a jib boom. Compact dimensions, tight turning radius and zero tailswing makes this the ideal boom lift for working in tight spaces.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Multi-function proportional controls
  • Zero tailswing
  • Tri-entry platform
  • Non-marking tires
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • Tilt alarm
  • Horn
  • Battery charge indicator
  • Drive motion alarm
  • Flashing amber light
  • Platform overload system
  • 2 year parts & labor, 5 year structural warranty

Additional information

Max Working Height

16.0m
Max Platform Height

14.0m
Max Working Outreach

7.35m
Clearance Height at Max Outreach

7.46m
Platform Size

1.0m x 1.83m
Chassis Width

1.7m
Overall Length

5.6m
Stowed Height

2.0m
Ground Clearance

152mm
Platform Capacity (SWL)

227kg
Max Drive Height

14.0m
Max Wind Speed

12.5m/s
Max Drive Speed (Stowed)

5.1m/h
Max Drive Speed (Elevated)

0.8km/h
Jib Length

1.5m
Jib Arc

140º
Platform Rotation

160º
Turret Rotation

360º non-continuous
Tailswing

0m
Raise/Lower Time

99/92 seconds
Gradeability

30%
Inside Turning Radius

0.6m
Outside Turning Radius

3.0m
Tyres

Non-marking IN240/55D 17.5
Controls

Proportional
Drive System

2 wheel drive
Power Source

8 x 6V 360 Ah batteries
Weight

6,664kg

Options

  • Special paint colors
  • 1.52m aluminum platform with swing gate
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme environmental package
  • Light package
  • Environmental hydraulic oil
  • Pipe rack
  • Snorkel OnSite™ telematics

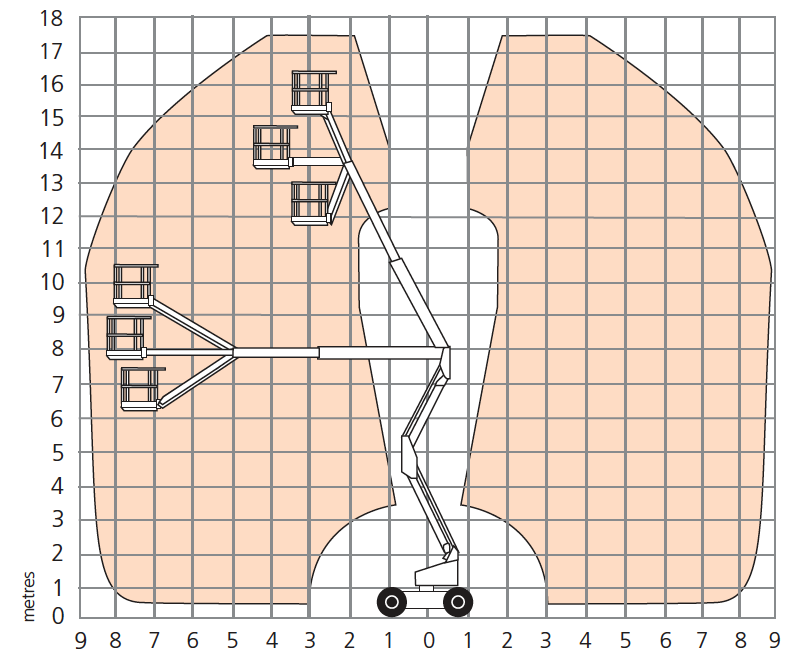

Working Envelope

A46JE-A46JRT-working-envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
