A46JRTE

  • Max. working height: 16.3m
  • Platform capacity: 227kg
  • Stowed height: 2.16m
  • Weight: 7,540 kg

Description

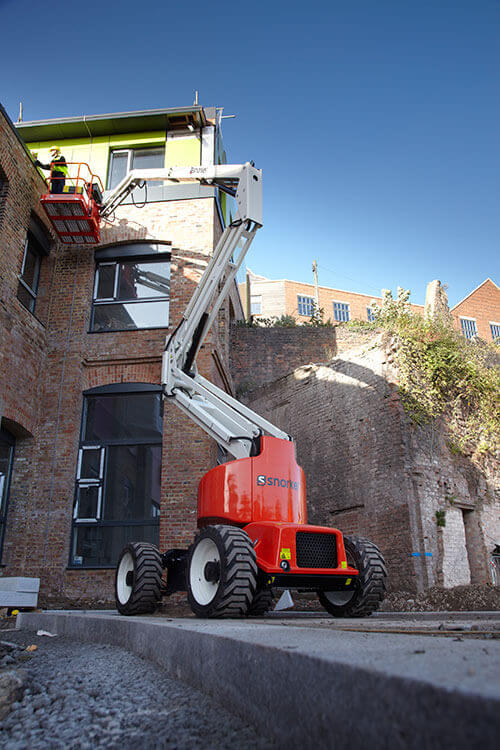

The electric version of the Snorkel A46JRT articulating boom lift, the A46JRTE offers clean performance and quiet operation from lithium-ion batteries. This fully electric model delivers the same rough terrain capability from battery power. Designed to be versatile, the A46JRTE has superb maneuverability and can work indoors.

Standard Features

  • Three lithium-ion battery systems 17.25kWh
  • Snorkel Guard™ secondary guarding system
  • Multi-function proportional controls
  • Oscillating front axle
  • Zero tailswing
  • Tri-entry platform
  • Non-marking foam filled tires
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • Tilt alarm
  • Horn
  • Drive motion alarm
  • Flashing amber light
  • Platform overload system
  • 2000 charging cycles/2 year** lithium battery warranty
  • 2 year parts & labor, 5 year structural warranty

Additional information

Max Working Height

16.3m

Max Platform Height

14.3m

Max Working Outreach

7.35m

Clearance Height at Max Outreach

7.67m

Platform Size

1.0m x 1.83m

Chassis Width

2.1m

Overall Length

5.7m

Stowed Height

2.16m

Ground Clearance

330mm

Platform Capacity (SWL)

227kg

Max Drive Height

14.3m

Max Wind Speed

12.5m/s

Max Drive Speed (Stowed)

6.8km/h

Max Drive Speed (Elevated)

1.3km/h

Jib Length

1.5m

Jib Arc

140º

Platform Rotation

160º

Turret Rotation

360º non-continuous

Tailswing

0m

Raise/Lower Time

101/98 seconds

Gradeability

45%

Inside Turning Radius

0.8m

Outside Turning Radius

3.17m

Tyres

High grip, foam-filled 355/55D625NHS 17.5

Controls

Proportional

Drive System

4 wheel drive

Power Source

17.25kWh Li-ion batteries with integrated BMS

Operating temperature

(-) 25º C to (+) 60º C

Charger

High frequency smart on-board 50A battery charger

Motor

AC electric motor

Weight

7,540 kg

Options

  • Special paint colors
  • Airline to platform
  • Pneumatic tires
  • 5’ aluminum platform with swing gate
  • Additional 111Ah battery system
  • Aircraft package
  • Deluxe aircraft package
  • Extreme environmental package
  • Glazier package
  • Light package
  • Utility package
  • Tool tray
  • Pipe rack
  • Environmental hydraulic oil
  • Snorkel OnSite™ telematics
  • Personal fall arrest system

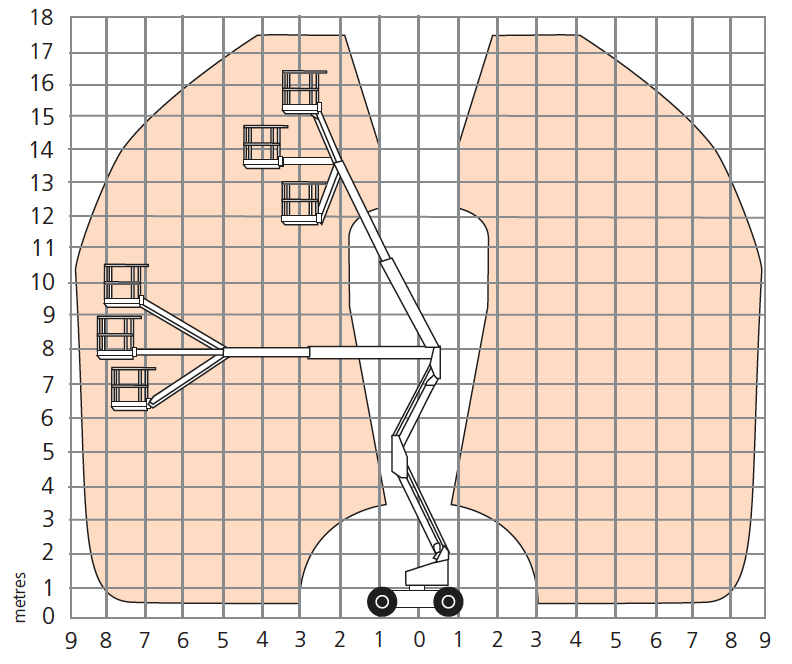

Working Envelope

A46JRTE working envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
