MB20J

  • Max. working height: 8.1m
  • Platform capacity: 215kg
  • Stowed height: 1.98m
  • Weight: 2,590kg

Description

The Snorkel MB20J is a self-propelled electric mast boom lift fitted with a jib boom, which is ideal for working in compact spaces requiring ‘up and over’ capabilities. Fitted with non-marking tyres as standard.

Standard Features

  • Ultra-tight inside turning radius
  • Proportional controls
  • Tilt alarm
  • Non-marking rubber tires
  • 2 persons indoors
  • 1 person outdoors
  • Self-seeking automatic battery charger
  • Automatic battery fill
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • Hydraulic pothole protection system
  • 2 year parts & labor, 5 year structural warranty

Additional information

Max Working Height

8.1m

Max Platform Height

6.1m

Max Working Outreach

2.6m

Platform Size

0.78m x 0.73m

Overall Width

0.81m

Stowed Length

2.41m

Stowed Height

1.98m

Ground Clearance

100mm

Platform Capacity (SWL)

215kg

Max Drive Height

6.1m

Max Wind Speed

12.5m/s

Max Drive Speed (Stowed)

3.2km/h

Max Drive Speed (Elevated)

0.48km/h

Jib Length

1.02m

Jib Arc

130º

Mast Rotation

360º

Raise/Lower Time

54/26 seconds

Gradeability

25%

Inside Turning Radius

0.3m

Outside Turning Radius

1.83m

Tyres

323mm non-marking rubber

Controls

Proportional controls

Drive System

Electro/hydraulic

Power Source

4 x 6V x 375 Ah batteries

Weight

2,590kg

Options

  • Special paint colors
  • Flashing amber light
  • Environmental hydraulic oil
  • Snorkel OnSite™ telematics

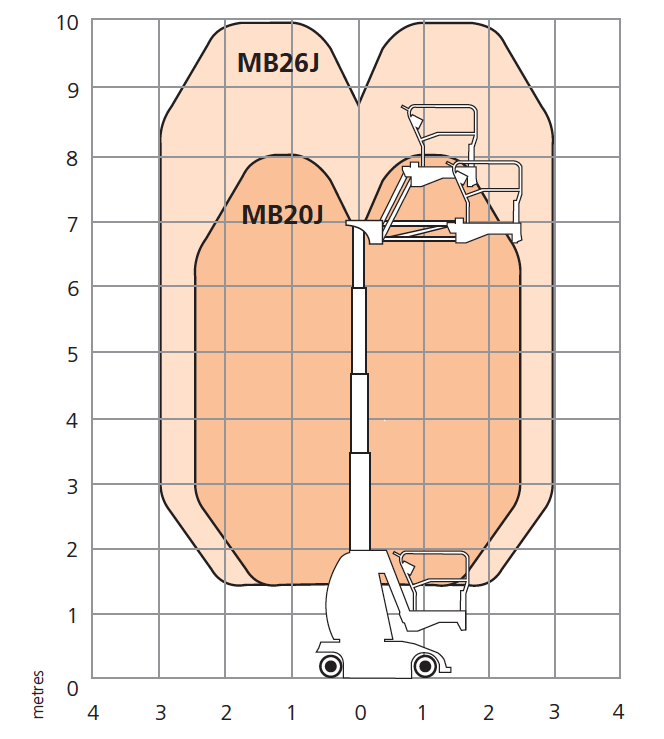

Working Envelope

MB20J/MB26J working envelope

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
