ML12C

  • Lift height–forks up: 4.0m
  • Lift height–forks down: 3.5m
  • Stowed height: 2.2m
  • Weight: 111kg

Description

The Snorkel ML12C material lift is a robust machine for construction applications. Designed to quickly and securely raise loads, the ML12C is equipped a dual handle, shift-on-the-fly, two-speed winch. Quick-fold stabilizers and heavy-duty, non-marking casters are fitted as standard.

Standard Features

  • Non-marking transport/loading wheels
  • Dual handle, two-speed shift-on-the-fly winch
  • Metal cable pulleys with sealed bearings
  • Heavy-gauge aluminum extrusions
  • Heavy duty non-marking casters
  • Crane attachment point
  • Cable guard
  • Smart latch system
  • Mast brake
  • 2 year parts & labor, 5 year structural warranty

Additional information

Lift Height – Forks Up

4.0m

Lift Height – Forks Down

3.5m

Stowed Width

0.77m

Stabiliser Width

1.63m

Stowed Length

0.85m

Operating Length

1.75m

Stowed Height

2.2m

Fork Width (Outside)

0.58m

Fork Length

0.76m

Ground Clearance

60mm

Max Load Capacity (0.36m Load Centre)

340kg

Max Load Capacity (0.61m Load Centre)

205kg

Max Load Capacity (1.07m Load Centre)

91kg

Min Load Height

150mm

Winch (High Speed)

13.1 cranks/m

Winch (Low Speed)

49.2 cranks/m

Weight

111kg

Options

  • Special paint colours
  • Adjustable forks
  • Boom
  • Pipe cradle
  • Fork extensions
  • Load platform
  • Stabilisers with non-marking swivel castors

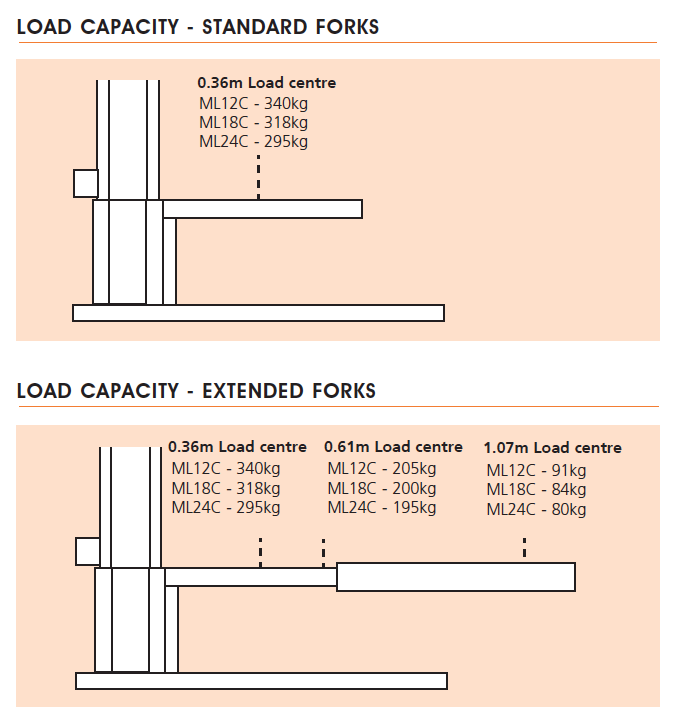

Loading Capacity

Snorkel ML12C/ML18C/ML24C Loading Capacity

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
