S2255RTE

Max. working height: 8.5m
Platform capacity: 420kg
Stowed height: 2.35m
Weight: 2,410kg

Add to quote list

Description

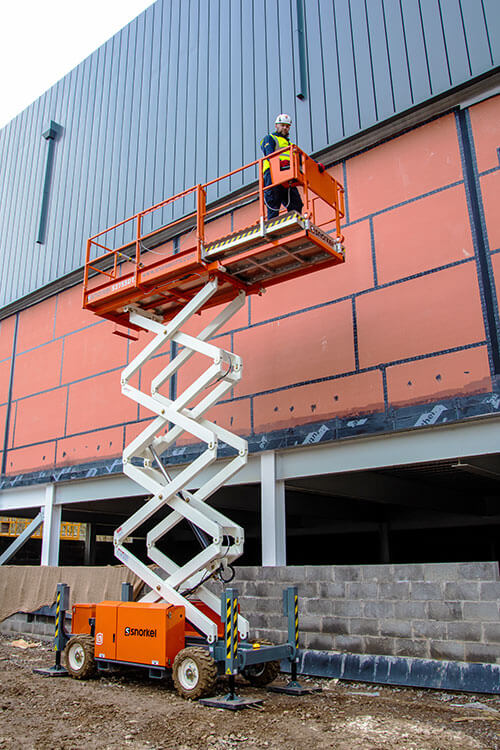

The Snorkel S2255RTE is an electric narrow rough terrain scissor lift equipped with long-lasting lithium batteries. The quiet performance means it is suitable for indoor and outdoor use without sacrificing power. Its ultra-narrow width and low weight allows this scissor lift to be easily towed on a tandem trailer.

Standard Features

Two lithium-ion battery systems 11.5kWh
4 wheel drive
4 hydraulic stabilizers with automatic leveling
Roll-out deck extension
Proportional controls
Non-marking foam filled tires
Power line to platform
Drive motion alarm
Descent alarm
Oscillating axle
Manual lowering valve
Flashing amber light
Dual lanyard attachment points
Hour meter
2000 charging cycles/2 year** lithium battery warranty
2 year parts & labor, 5 year structural warranty

Additional information

Max Working Height	8.5m
Max Platform Height	6.5m
Platform Size (Stowed)	1.4m x 2.73m
Platform Size (Extended)	1.4m x 3.93m
Deck Extension	1.2m
Overall Width	1.45m
Overall Length	3.3m
Stowed Height	2.35m
Min Height (Guardrails Folded)	2.0m
Ground Clearance	260mm
Platform Capacity (SWL)	420kg
Max Drive Height	6.2m
Max Wind Speed	12.5m/s
Max Drive Speed (Stowed)	5.2km/h
Max Drive Speed (Elevated)	0.66km/h
Raise/Lower Time	26/30 seconds
Gradeability	35%
Max Outrigger Leveling (Front to Rear)	6º
Max Outrigger Leveling (side to side)	10º
Inside Turning Radius	2.5m
Outside Turning Radius	4.75m
Exit/Entry Angle	20°
Tyres	0.58m x 0.22m – 12 non-marking
Controls	Proportional joystick
Drive System	4 wheel drive
Power Source	11.5kWh Li-ion batteries with integrated BMS
Operating temperature	(-) 25º C to (+) 60º C
Charger	High frequency smart on-board 50A battery charger
Motor	AC electric motor
Weight	2,410kg

Options

Special paint colors
Additional 111Ah battery system
Nylon spreader pads (set of 4)
Environmental hydraulic oil
Snorkel OnSite™ telematics

Turning Radius

Snorkel S2255RTE/S2755RTE Turning Radius

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.
