S2755RT

  • Max. working height: 10.1m
  • Platform capacity: 300kg
  • Stowed height: 2.5m
  • Weight: 2,750kg

Description

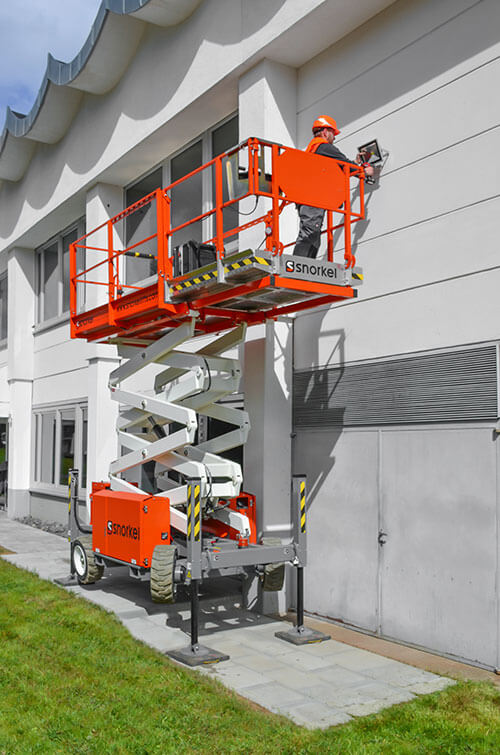

The Snorkel S2755RT narrow diesel scissor lift is designed to be ultra-compact for outdoor work in confined spaces. Designed to deliver excellent off-road performance, this rough terrain scissor lift tackles all types of terrains with ease.

Equipped with hydraulic outriggers as standard, the S2755RT features automatic leveling on uneven ground. Also designed with narrow dimensions, the scissor lift is easily towed on a trailer by a car or commercial vehicle between jobs.

Standard Features

  • 4 wheel drive
  • 4 hydraulic stabilizers with automatic leveling
  • Roll out deck extension
  • Non-marking foam filled tires
  • Proportional controls
  • Power line to platform
  • Drive motion alarm
  • Descent alarm
  • Oscillating axle
  • Manual lowering valve
  • Flashing amber light
  • Dual lanyard attachment points
  • Hour meter
  • 2 years parts & labor, 5 year structural warranty

Additional information

Max Working Height

10.1m

Max Platform Height

8.1m

Platform Size (Stowed)

1.4m x 2.73m

Platform Size (Extended)

1.4m x 3.93m

Deck Extension

1.2m

Overall Width

1.45m

Overall Length

3.3m

Stowed Height

2.5m

Min Height (Guardrails Folded)

2.13m

Ground Clearance

260mm

Platform Capacity (SWL)

300kg

Max Drive Height

7.8m

Max Wind Speed

12.5m/s

Max Drive Speed (Stowed)

5.2km/h

Max Drive Speed (Elevated)

0.5km/h

Raise/Lower Time

26/30 seconds

Gradeability

35%

Max Outrigger Leveling (Front to Rear)

Max Outrigger Leveling (side to side)

10º

Inside Turning Radius

2.5m

Outside Turning Radius

4.75m

Tyres

0.58m x 0.22m – 12 non-marking

Controls

Proportional joystick

Drive System

4 wheel drive

Power Source

Kubota Diesel Engine

Weight

2,750kg

Options

  • Special paint colors)
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Cold weather package (block heater + battery warm-up)
  • Snorkel OnSite™ telematics

Turning Radius

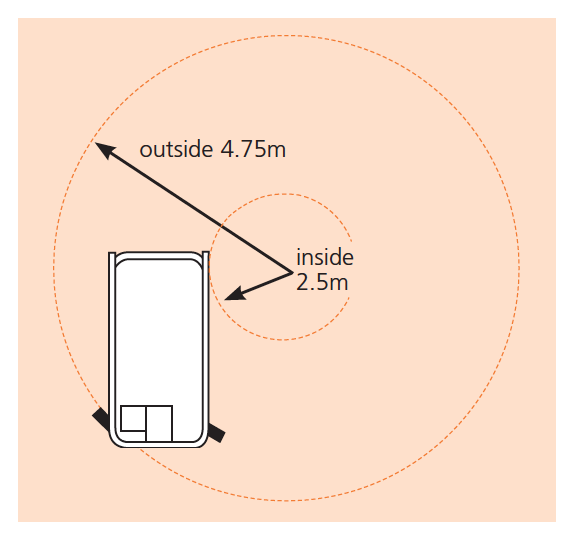

Snorkel S2255RT/S2755RT Turning Radius

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.

Video

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
