S9056RT-HC

  • Max. working height: 19.1m
  • Platform capacity: 1,134kg
  • Stowed height: 3.09m
  • Weight: 9,072kg

Description

The Snorkel S9056RT-HC ultra-capacity rough terrain scissor lift handles heavy tasks. A high lift capacity and high lift height elevate this scissor lift to new levels. Designed with a twin extension deck and extra-wide pallet gate as standard, it is easy to work at height with tools and materials. Sturdy construction and powerful 4-wheel drive make the S9056RT-HC ideal for rough terrain.

Standard Features

  • 4 wheel drive
  • Dual powered extension decks
  • 4 hydraulic stabilizers with automatic leveling
  • Foam filled tires
  • Proportional controls
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Flashing amber light (x2)
  • Locking, oscillating axle
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Dual lanyard attachment points
  • 2 years parts & labor, 5 year structural warranty

Additional information

Max Working Height

19.1m

Max Platform Height

17.1m

Platform Size (Stowed)

5.49m x 2.28m

Platform size (dual deck extended)

2.28m x 8.23m

Deck Extension

1.37m

Overall Width

2.28m

Overall Length

4.87m

Stowed Height

3.09m

Min Height (Guardrails Folded)

2.1m

Ground Clearance

356mm

Platform Capacity (SWL)

1,134kg

Max Drive Height

13.1m

Max Wind Speed

12.5m/s

Max Drive Speed (Stowed)

6.7km/h

Max Drive Speed (Elevated)

0.96km/h

Raise/Lower Time

55/35 sec

Gradeability

50%

Max Outrigger Leveling (Front to Rear)

Max Outrigger Leveling (side to side)

12˚

Inside Turning Radius

2.4m

Outside Turning Radius

5.6m

Tyres

13 x 36 foam filled

Controls

Proportional joystick

Drive System

4 wheel drive

Power Source

Kubota diesel

Weight

9,072kg

Options

  • Special paint colors
  • Hydraulic generator 110V 2kW
  • 12kW generator package
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Dual fuel
  • Non-marking foam filled tires
  • Cold weather package (block heater + battery warm up)
  • Snorkel OnSite™ telematics

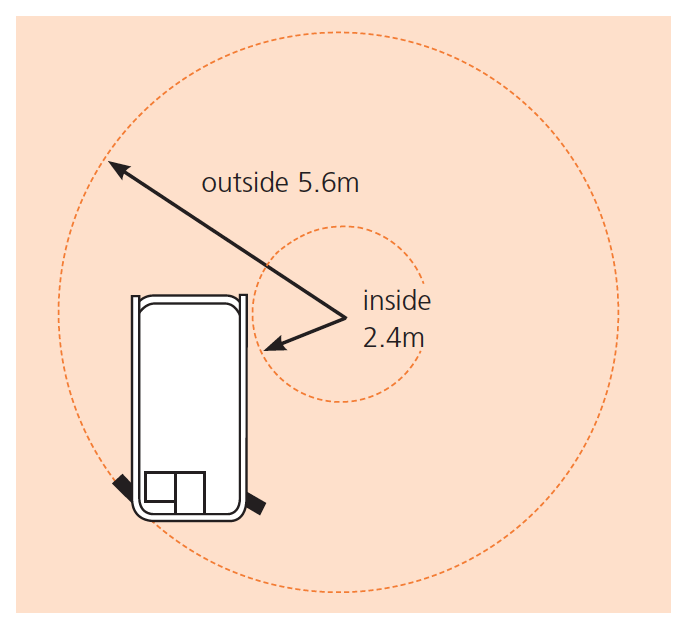

Turning Radius

Snorkel S9056RT-HC/S9070RT-HC Turning Radius

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
