SL26RTE

Max. working height: 10.0m
Platform capacity: 680kg
Stowed height: 2.6m
Weight: 3,500kg

Add to quote list

Description

The Snorkel SL26RTE all-electric Speed Level is powered by long-lasting lithium batteries. Its quiet performance is balanced by automatic self-leveling capabilities, without outriggers. Equipped with a 3 ft. (0.91m) roll-out deck extension, the SL26RTE features a 5 ft. 8 in. x 15 ft. (1.72m x 4.6m) platform, when extended, able to lift up to five people with tools.

Standard Features

Two lithium-ion battery systems 222Ah
Automatic powered platform levelling
Powerful 4 wheel drive
Oscillating front axle
Roll-out deck extension
Descent alarm
High grip non-marking all terrain tyres
Digital proportional controls
Power line to platform
Fold-down guardrails
All motion alarm
Hour meter & on-board diagnostics display
Flashing amber light
2000 charging cycles / 2 year* lithium battery warranty
2 year parts & labour, 5 year structural warranty

*whichever comes first. Refer to Snorkel warranty policy for full details, limitations and restrictions. Batteries at the end of their life to be returned to Snorkel for recycling.

Additional information

Max Working Height	10.0m
Max Platform Height	8.0m
Platform Size (Stowed)	1.72m x 3.66m
Platform Size (Extended)	1.72m x 4.6m
Deck Extension	0.91m
Overall Width	2.13m
Overall Length	3.79m
Stowed Height	2.6m
Min Height (Guardrails Folded)	1.7m
Chassis Ground Clearance	305mm
Axle Ground Clearance	195mm
Platform Capacity (SWL)	680kg
Max Wind Speed	12.5m/s
Max Drive Height	8.0m
Max Drive Speed (Stowed)	5.4 km/h
Max Drive Speed (Elevated)	0.8 km/h
Raise/Lower Time	21/32 seconds
Gradeability	50%
Max Outrigger Leveling (Front to Rear)	9º
Max Outrigger Leveling (side to side)	13º
Inside Turning Radius	3.9m
Outside Turning Radius	5.64m
Tyres	26 x 12.00 – 12 foam filled
Controls	digital proportional joystick
Drive System	4 wheel drive with hydraulic motors and flow dividers
Power Source	Li-ion batteries with integrated BMS
Operating Temperature	(-)25°C to (+)60°C
Charger	high frequency smart on-board 50A battery charger
Motor	AC electric motor
Weight	3,500kg

Options

Special paint colors
Environmental hydraulic oil
Additional 5.75kWh battery system
Tunnel package (RTE)
Extra range tunnel package (RTE)
Work light package
Driving light package
Extreme environment package
Aluminum platform floor
Snorkel OnSite™ telematics

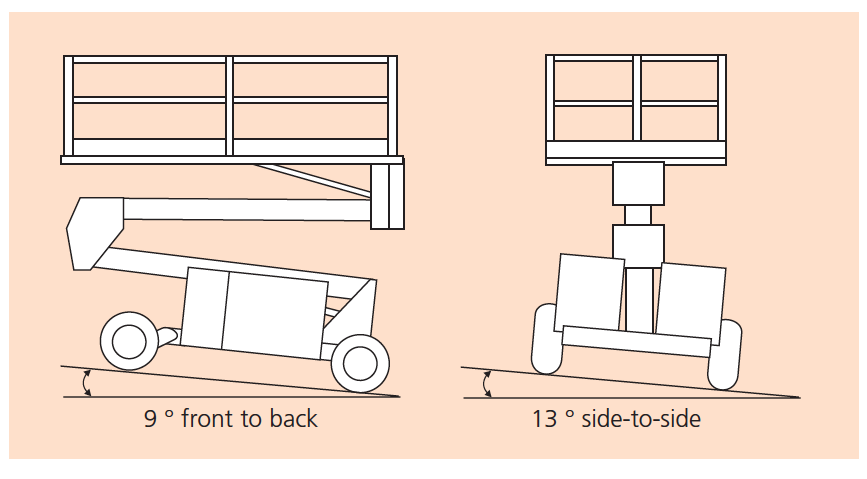

Levelling Capabilities

SL26RTE/SL30RTE leveling capabilities

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.
