SL30RT

Max. working height: 11.0m
Platform capacity: 590kg
Stowed height: 2.6m
Weight: 3,400kg

Add to quote list

Description

The Snorkel SL30RT is the largest of the Speed Level range, lifting capacities of up to 590kg to 11.0m. Able to climb gradients of up to 50%, the SL30RT can be automatically leveled with the touch of a button on compound slopes, making it ideal for use in multi-storey parking garage construction.

The Snorkel Speed Level has recently been upgraded with a new control system delivering a smoother drive, and on-board diagnostics with plain text display for easier troubleshooting. The new control system is common across many models within the Snorkel product line.

Standard Features

Automatic powered platform leveling
Powerful 4 wheel drive
Oscillating front axle
High grip, open tread deck
Descent alarm
High grip, all-terrain tires
Dual multi-disc brakes
Proportional controls
Flashing amber light
Power line to platform
Fold-down guardrails
All motion alarm
Hour meter & on-board diagnostics display
Horn
2 year parts & labor, 5 year structural warranty

Additional information

Max Working Height	11.0m
Max Platform Height	9.0m
Platform Size (Stowed)	1.72m x 4.23m
Platform Size (Extended)	n/a
Overall Width	2.13m
Overall Length	4.3m
Stowed Height	2.6m
Min Height (Guardrails Folded)	1.7m
Chassis Ground Clearance	305mm
Axle Ground Clearance	195mm
Platform Capacity (SWL)	590kg
Max Drive Height	9.0m
Max Wind Speed	12.5m/s
Max Drive Speed (Stowed)	6.4km/h
Max Drive Speed (Elevated)	0.8 km/h
Raise/Lower Time	24/36 seconds
Gradeability	50%
Max Outrigger Leveling (Front to Rear)	9º
Max Outrigger Leveling (side to side)	13º
Inside Turning Radius	3.9m
Outside Turning Radius	5.64m
Tyres	26 x 12.00 – 12 foam filled
Controls	Proportional joystick
Drive System	4 wheel drive with hydraulic motors and flow dividers
Power Source	Kubota D-902 water-cooled diesel engine – Tier 4 Final
Weight	3,400kg

Options

Special paint colors
Diesel exhaust scrubber
Flashing amber light
Tunnel package
Environmental hydraulic oil
Hydraulic generator 110/240V 2kW
Platform overload system
Non-marking tires
Extreme environment package
Snorkel OnSite™ telematics

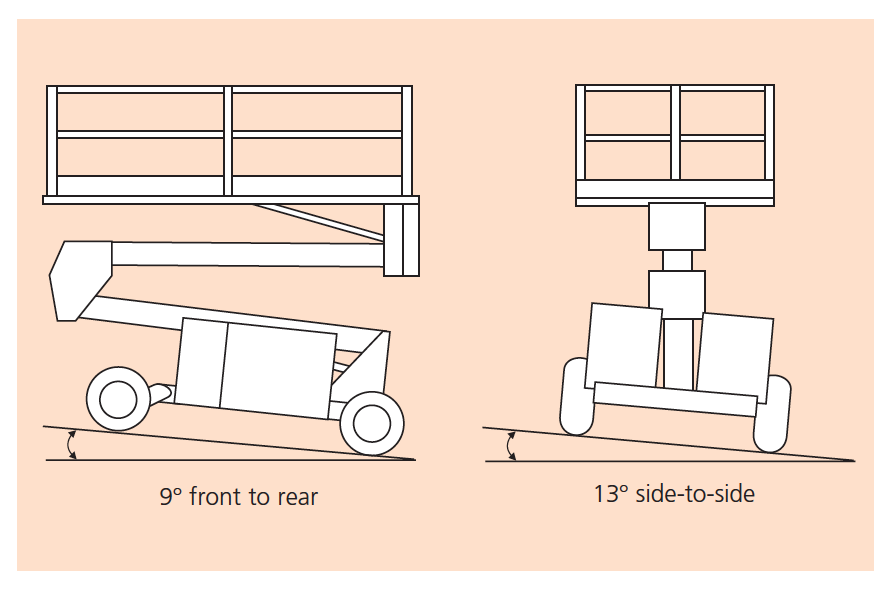

Levelling Capabilities

SL26RT/SL30RT-leveling-capabilities

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.
