SR1065

Max. lift height: 9.5m
Max. lift capacity: 6,500kg
Max. forward reach: 5.4m
Weight: 11,090kg

Description

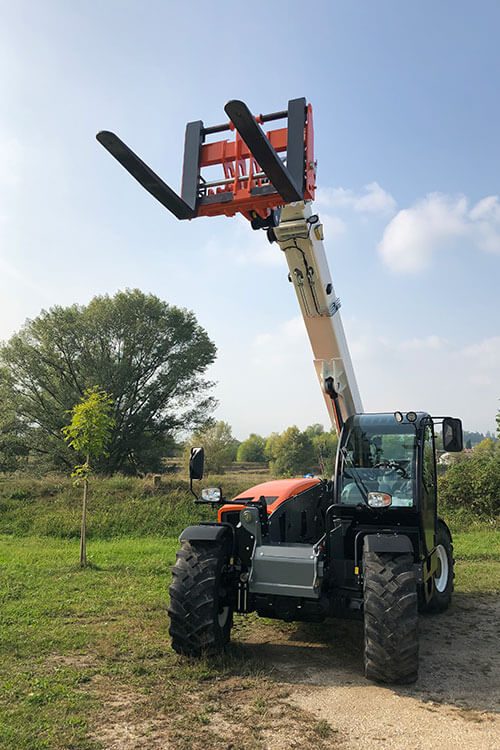

The new Snorkel SR1065 rough terrain telehandler offers robust reliability. A high lift capacity maximizes performance, and a compact design makes it manoeuvrable on the jobsite. Equipped with 4-wheel drive, power assisted steering and a frame leveling system, this telehandler delivers power and precision with great handling capacities.

Standard Features

Full-time 4-wheel drive
4-wheel steer – selectable front, crab & coordinated steering modes
Auxiliary hydraulic circuit on the boom
Variable speed hydrostatic drive
Fender (4)
Fully enclosed cab with heat
Proportional joystick controls
Adjustable steering column
Illuminated gauge and switch panels
Colour LCD display with machine & engine diagnostics
Adjustable suspension seat
Flashing beacon
Fixed 1500mm carriage & 1500mm floating forks
2 year parts & labour, 5 year structural warranty

Additional information

Max Lift Height	9.5m
Max Lift Capacity	6,500kg
Max Forward Reach	5.4m
Overall Width	2.3m
Stowed Height	2.5m
Wheelbase	2.9m
Ground Clearance	410mm
Length to Fork Face	6.45m
Max. Drive Speed	40km/h
Raise/Lower Time	20/14 sec
Frame Levelling	10°
Outside Turning Radius	4.5m
Tyres	445/65 R22.5”
Fuel Capacity	120L
Power Source	Deutz TCD 74.5kW Stage IIIA / Tier 3
Hydraulic Pressure	230 bar
Hydraulic Flow (Per Minute)	100L
Hydraulic Oil Capacity	150L
Weight	11,090kg

Options

Special paint colours
Air conditioning
Grammer air suspension seat
Front & rear LED work lights (4)
Work lights on boom (2)
Heated right external mirror
Additional rear mirror
Cab front glass protection grille
Engine preheater 220V
Boom suspension & floating boom
Bluetooth radio, handsfree & USB socket
Sun curtain
Fixed tow hook 6 ton
Snorkel OnSite™ telematics

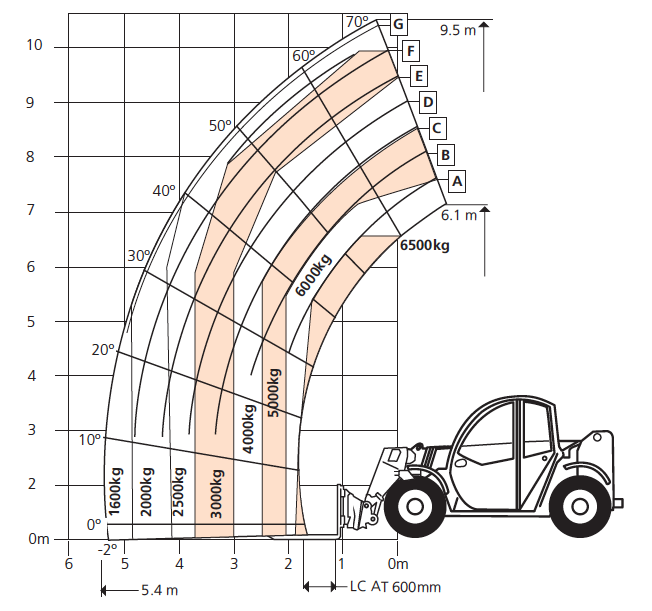

Load Chart

Snorkel SR1065 Load Chart

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.
