SR1745

Max. lift height: 16.4m
Max. lift capacity: 4,535kg
Max. forward reach: 12.6m
Weight: 12,180kg

Description

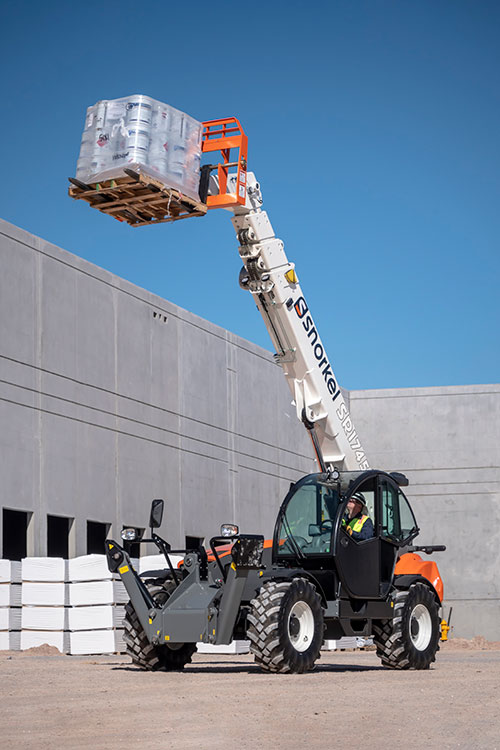

The Snorkel SR1745 rough terrain telehandler is built powerful. Delivering maximum performance is a robust Deutz Tier 4 Final diesel engine and high quality construction. Equipped with outriggers and frame sway as standard, this telehandler stays steady in all terrains.

Standard Features

Full-time 4-wheel drive
4-wheel steer – selectable front, crab & coordinated steering modes
Auxiliary hydraulic circuit on the boom
Variable speed hydrostatic drive
Fender (4)
Fully enclosed cab with heat
Proportional joystick controls
Adjustable suspension seat
Illuminated gauge & switch panels
Colour LCD display with machine & engine diagnostics
Fixed 1500mm carriage & 1500mm floating forks
2 year parts & labour, 5 year structural warranty

Additional information

Max Lift Height	16.4m
Max Lift Capacity	4,535kg
Max Forward Reach	12.6m
Overall Width	2.3m
Stowed Height	2.56m
Wheelbase	2.95m
Ground Clearance	350mm
Length to Fork Face	6.6m
Max. Drive Speed	30km/h
Raise/Lower Time	16 / 10.8 seconds
Frame Levelling	11°
Outside Turning Radius	4.2m
Tyres	445/65 – 22.5"
Fuel Capacity	120L
Power Source	Deutz 55.4kW Stage V/Tier 4 Final diesel
Hydraulic Pressure	230 bar
Hydraulic Flow (Per Minute)	120L
Hydraulic Oil Capacity	150L
Weight	12,180kg

Options

Special paint colours
Air conditioning
Grammer air suspension seat
Front & rear LED work lights (4)
Work lights on boom (2)
Heated right external mirror
Additional rear mirror
Cab front glass protection grille
Engine preheater 220V
Boom suspension & floating boom
Bluetooth radio, handsfree & USB socket
Sun curtain
Fixed tow hook 6 ton
Snorkel OnSite™ telematics

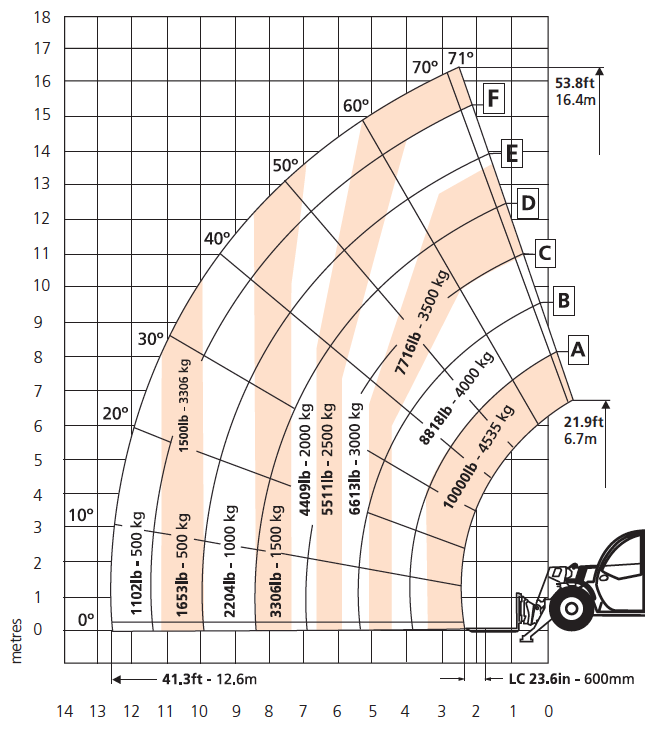

Load Chart

SR1745-load-chart

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.
