SR626

Max. lift height: 5.79m
Max. lift capacity: 2,600kg
Max. forward reach: 3.2m
Weight: 4,700kg

Description

The Snorkel SR626 compact rough terrain telehandler is a robust performer. Designed for working in confined spaces, the telehandler offers proportional controls for precise maneuvering. Full-time 4-wheel drive and power assisted steering make this compact telehandler well-suited for construction applications.

Standard Features

Full-time 4-wheel drive
4-wheel steer – selectable front, crab & coordinated
Selectable front, crab & coordinated steering modes
Auxiliary hydraulic circuit on the boom
Variable speed hydrostatic drive
Fender (set of 4)
Fully enclosed cab with heat
Proportional joystick
Illuminated gauge and switch panels
Colour LCD display with machine & engine diagnostics
Flashing beacon
Fixed 1200mm carriage with 1200mm floating forks
2 year parts & labour, 5 year structural warranty

Additional information

Max Lift Height	5.79m
Max Lift Capacity	2,600kg
Max Forward Reach	3.2m
Width	1.89m
Stowed Height	1.93m
Length to Fork Face	4.19m
Wheelbase	2.5m
Ground Clearance	220mm
Max. Drive Speed	27km/h
Raise/Lower Time	6.9 / 5 seconds
Outside Turning Radius	3.25m
Tyres	12 x 16.5
Fuel Capacity	80L
Power Source	Yanmar 52kW Stage V diesel
Hydraulic Pressure	230 bar
Hydraulic Flow (Per Minute)	70L
Hydraulic Oil Capacity	70L
Weight	4,700kg

Options

Special paint colours
Euro coupling
Air conditioning
Grammer air suspension seat
Front & rear LED work lights (4)
Work lights on boom (2)
Heated right exterior mirror
Additional rear mirror
Cab front glass protection grille
Non-marking tyres 12-16.5
Engine preheater 220V
Boom suspension & floating boom
Bluetooth radio, handsfree & USB socket
Sun curtain
Fixed tow hook 6 ton
Snorkel OnSite™ telematics

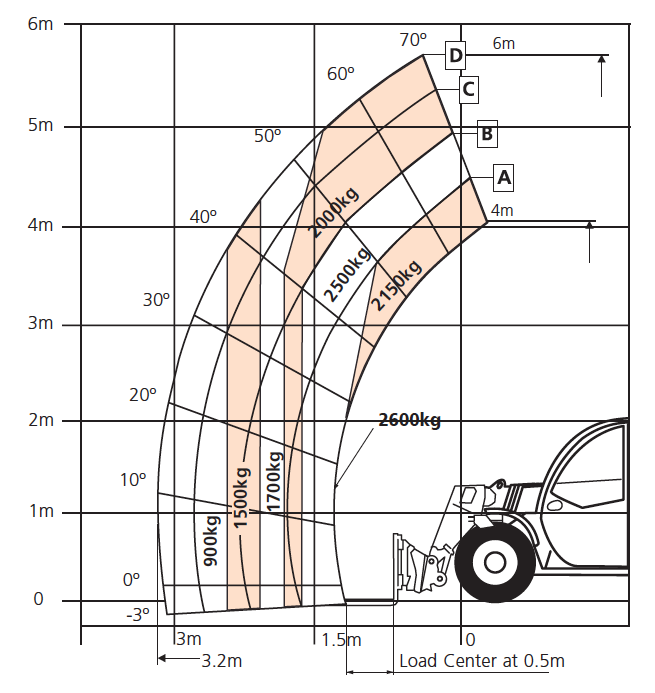

Load Chart

SR626 Load Chart

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.
