TB86J

Max. working height: 28.2m
Platform capacity: 227kg
Stowed height: 2.9m
Weight: 17,549kg

Add to quote list

Description

The Snorkel TB86J is a heavy-duty diesel telescopic boom lift, featuring a job boom for additional flexibility. Equipped with powerful 4 wheel drive and 4 wheel steer, the TB86J is ideal for construction applications and rough terrain jobsites.

Standard Features

Snorkel Guard™ secondary guarding system
4-wheel drive, steer and crab steer
Hydraulic platform rotation
360º continuous turntable rotation
Drive motion alarm
Flashing amber light
Foam filled lug tires
Proportional drive, boom lift, swing & extend
Rheostat control for jib & platform level
Power line to platform
3.5º tilt alarm
Tri-entry platform
Dual lanyard attachment points
Hour meter & on-board diagnostics display
Horn
2 year parts & labor, 5 year structural warranty

Additional information

Max Working Height	28.2m
Max Platform Height	26.2m
Max Working Outreach	23.9m
Platform Size	0.91m x 2.44m
Overall Width	2.6m
Overall Length	12.9m
Stowed Height	2.9m
Ground Clearance	330mm
Platform Capacity (SWL)	227kg
Max Drive Height	26.2m
Max Wind Speed	12.5m/s
Max Drive Speed (Stowed)	4.8 km/h
Max Drive Speed (Elevated)	1.0 km/h
Jib Length	2.0m
Jib Arc	135º (+70º/-65º)
Platform Rotation	150º
Turret Rotation	360° continuous
Tailswing	1.9m
Raise/Lower Time	70/65 sec
Gradeability	40%
Inside Turning Radius	2.4m
Outside Turning Radius	4.7m
Tyres	15 x 625 foam filled lug
Controls	Proportional joystick
Drive System	4 wheel drive
Power Source	Kubota V2403 48kW/59hp diesel – Tier 4 Final
Weight	17,549kg

Options

Special paint colors
Airline to platform
AC generator 110V/2.5kW
Non-marking tires
Cold weather package
Extreme cold weather package
Extreme environment package
Light package
Tow kit
Dual fuel
Glazier package
Utility package
12kW generator package
12kW generator/welder package
Environmental hydraulic oil
Tool tray
Pipe rack
Personal fall arrest system
Snorkel OnSite™ telematics

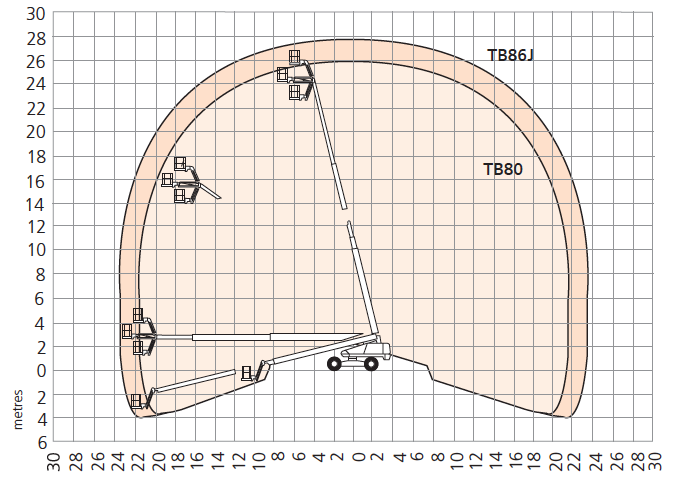

Working Envelope

TB80-TB86J-working-envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.
