TL37J

  • Max. working height: 12.9m
  • Platform capacity: 215kg
  • Stowed height: 2.1m
  • Weight: 1,586kg

Description

The Snorkel TL37J is a high specification trailer mounted boom lift which offers an excellent working envelope, including a jib boom for additional flexibility. This feature-packed lift also includes hydraulic outriggers for easy set up, and proportional controls for simple and smooth operation.

Standard Features

  • 1.3m jib with 130˚ working arc
  • In-line boom design for maximum rigidity
  • Hydraulic stabilizers
  • Hand pump emergency lowering from platform
  • Lock valves on all hydraulic cylinders
  • Proportional live hydraulic controls
  • Power line to platform
  • Dual lanyard attachment points
  • 2 year parts & labor, 5 year structural warranty

Additional information

Max Working Height

12.9m

Max Platform Height

10.9m

Max Working Outreach

5.6m

Platform Width

1.14m

Platform Depth

0.7m

Outrigger Footprint

3.9m x 3.3m

Towing Width

1.61m

Towing Length

6.4m

Stowed Height

2.1m

Platform Capacity (SWL)

215kg

Max Wind Speed

12.5m/s

Jib Length

1.3m

Jib Arc

130º

Platform Rotation

160º

Turret Rotation

700° non-continuous

Tyres

185R14C

Controls

Hydraulic proportional

Power Source

24V DC battery

Battery

4 x 6V 225Ah batteries

Power Options

bi-energy (petrol & battery) 230V mains power, or gasoline

Weight

1,586kg

Options

  • Special paint colors
  • Friction drive assist package
  • Flashing amber light
  • Work lights in platform
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Snorkel OnSite™ telematics

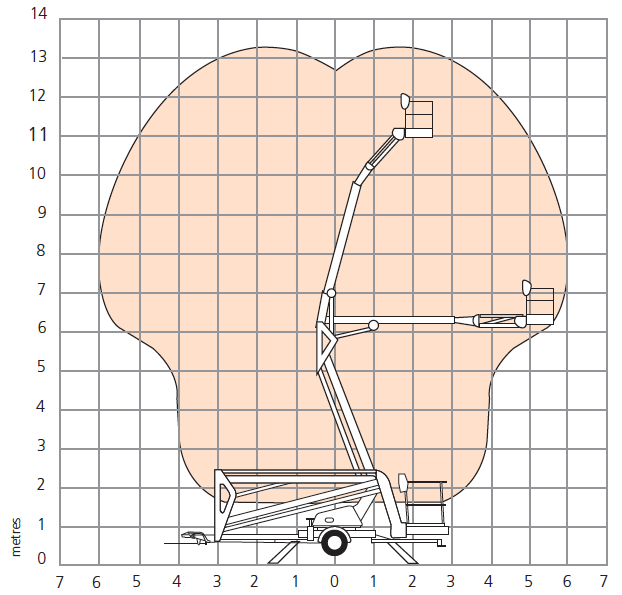

Working Envelope

TL37J-working-envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
