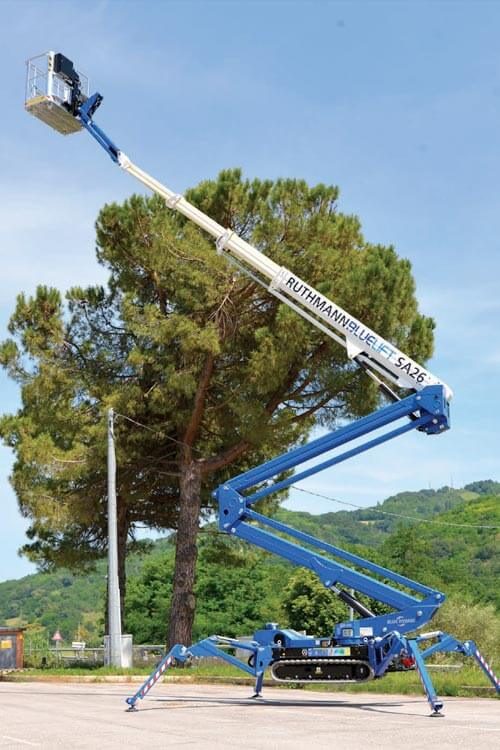

SA26

  • Max. working height: 26 m
  • Max. horizontal outreach: 14.5 m | 13.7 m | 11.7 m | 10.90 m
  • Basket capacity: 250 kg
  • Overall weight: 3350 kg

Description

Equipment standard

  • Quickly removable aluminum basket
  • Basket rotation
  • i-Performing electric pump (patented) with auto Start/Stop system
  • 230V power outlet in basket
  • Radio remote control with interactive and multi-lingual display
  • Track width adjusting system with indipendent axle
  • Multi-area stabilizer setting (3 different set-up positions)
  • Moment limiting device
  • Automatic center position of turret
  • Self Stabilizing system
  • Automatic START & STOP of engines and RPM control
  • Proportional and simultaneous electro-hydraulic controls
  • Proportional track drive with hydraulic breaking system
  • Double drive speed system with safety control
  • Driving lateral slope alarm with safety stop
  • Driving possible with jib boom raised (with selector)
  • Interblock outriggers/booms
  • Emergency push-button with engine stop
  • Simple emergency lowering procedure
  • Hand pump for the emergency lowering of platform
  • Covers on outrigger cylinder’s piston rod, oil tank and emergency controls
  • Modem connection plug for diagnosis/software upgrading in remote
  • Produced according to EN280 norm and international safety regulation

Additional information

Max Working Height

26 m

Max Horizontal Outreach

10.90 m/250 kg, 11.7 m/200 kg, 13.7 m/120 kg, 14.5 m/80 kg

Basket Capacity

250 kg

Basket Dimension

1.3m x 0.7m x 1.1m

Turret Rotation

340°

Overall Weight

3350 kg

Travel Speed

1.5 km/h

Max Gradeability

28%

Combustion Engine

Honda iGX

Electric Motor

230V – 2.2 kW

Options

  • Air/Water tube
  • Diesel engine HATZ 1B50 with automatic RPM control and
    Automatic START & STOP
  • 110V power
  • Blue Hybrid pack*
  • Asymmetric stability area
  • No-marking crawlers
  • Go-Home function
  • Custom paint work
* This option increase the overall weight of platform

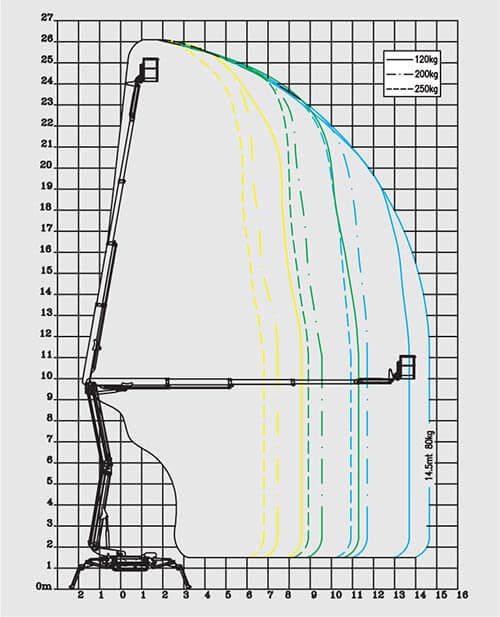

Working Envelope

SA26 Working Envelope

Videos

Bluelift SA 26

Optional Blue Lithium Package

All Bluelift products are sold with a one year warranty on parts and labour and two years warranty on the electronics card.

For more information, contact your sales representative.

Warranty


Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
